Our Septic Pump Screen’s Dimensions & Materials



Product Specifications

Support Rings SDR- 35 or SDR-41 PVC

Screening Material 1/8” diameter 1/16” thick PVC

Base Material 1/8” thick PVC

Rivets 1/8” stainless steel

Screws Stainless Steel


Surface area

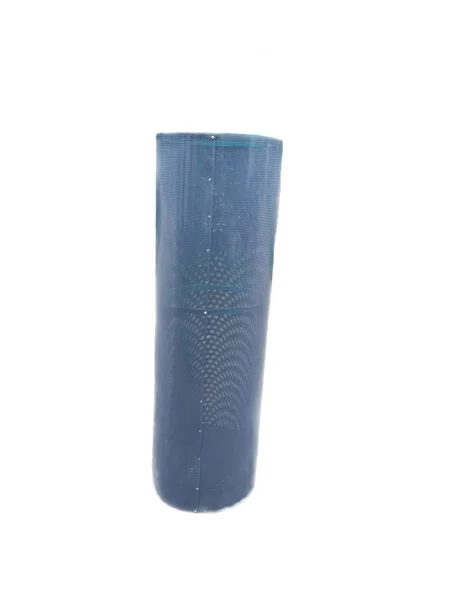

Septic Screen_white_web-1.jpg

10” screen = approx. 1507 sq inch

12” screen = approx. 1809 sq inch

14” screen = approx. 2110 sq inch

16” screen = approx. 2713 sq inch


Other Notes

  • Flow rates will vary between screen sizes

  • Screening has 16 holes per square inch
